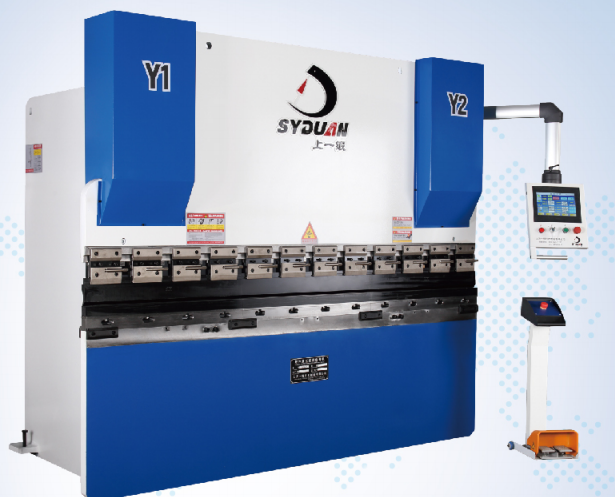

WC67K
DOUBLE SERVO CNC BENDING MACHINE
- ◆ The main machine adopts WC67K series models, special NC system with economic type;
- ◆ Multi-step programming function, can realize the multi – step program to run automatically, continuous positioning, after the realization of the block and slider position accurate automatic adjustment;
- ◆ The bending counting function, display the number of processed materials, the position of the slider, procedures and parameters of power failure memory block;
- ◆ The rear stopper adopts imported ball screw, to ensure the positioning precision ofRear, high precision machine processing.

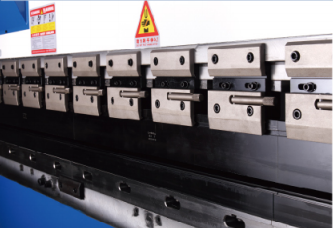

Quick clamping device (standard)
High precision one key quick clamping meets the requirements of workpiece clamping and precision positioning, and also provides convenience for die change.
Manual mechanical compensation (optional)
◆ Manual mechanical compensation, a perfect compensation curve is generated by the axial displacement of wedge,Ensure that the workpiece reaches high bending accuracy.
Adjustable rack and pinion transmission mechanism (standard)
◆ With the characteristics of large transmission power and effective gear transmission, it can ensure constant transmission ratio and transfer the movement between two shafts at any angle. It has long service life, stable operation and high reliability.

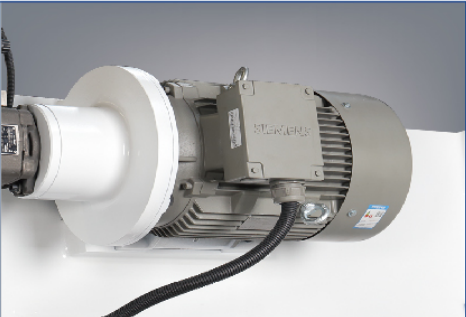

Servo angle control (standard)
◆ Controlled by servo motor, the angle can be changed quickly to realize automatic bending.
Rear blocking device (standard)
◆ The unique double linear guide rail structure ensures excellent positioning accuracy. Multi level gear design, increase the positioning range, value for money.
Precision rear stop finger (standard)
◆ It solves the problems of low adjustment accuracy and inconvenient locking operation of the rear stop finger. The fine adjustment mode has high adjustment accuracy, and the locking installation is fast and convenient, and the working efficiency is improved.
Lifting rear stop (optional)
◆ It is controlled by servo motor to ensure fast positioning and accurate bending;
◆ The stop finger moves smoothly on two linear guides to ensure the best positioning accuracy.

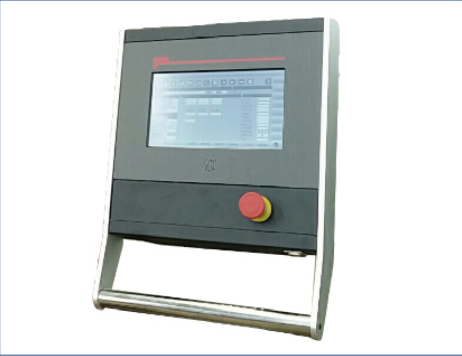

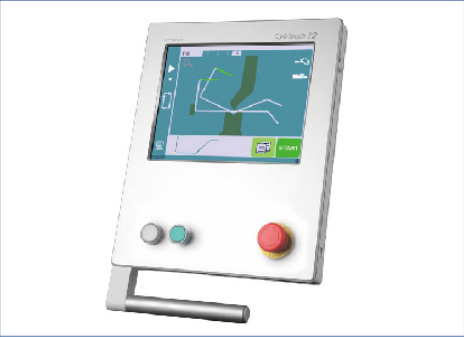

Numerical Control System (standard)
1、Backgauge positioning control, bending machine slider dead stop positioning control;
2、With single-phase and two-way positioning, the effective elimination of the screw gap;
3、Feed function has to give way to escape, after avoiding interference with the workpiece stop feeding device to reduce wear and improve positioning accuracy;
4、With automatic or manual search function reference point;
5、Has the power position memory function, the parameters, location and procedures for on-site protection;
Note: Due to the continuous improvement of the product, if there is any inconsistency between the technical data herein and the actual product data, the technical parameter agreement between both parties shall prevail. No further notice will be given.
